Summary:  Overall, communications were accurate and managed promptly and courteously.  The microphone briefings by the ECC Manager were extremely valuable. The message form and delivery system is cumbersome and often fails to communicate important information.  The whiteboard posting system has multiple difficulties. Situation reporting was difficult due to the orientation of the computer to the whiteboard. Call-taking and dispatch are at opposite ends of the room, inhibiting information coordination between them.

  • Messaging Systems
Multiple problems with the current messaging system were identified. The forms are relatively complex, with multiple fields, some of which were not completed (particularly the time field for when the message was taken).  This is important information for posting to the whiteboard and for maintaining documentation of event chronology. ARES/RACES found it confusing to use the ECC forms in addition to or instead of their radio forms. In many cases, a simpler phone-message slip might have sufficed for certain incoming phone-calls.

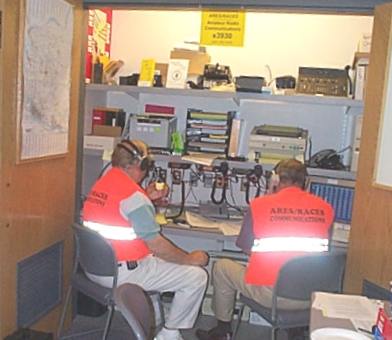

Picture of amateur radio volunteers
Amateur radio volunteers field incoming messages
and monitor river guages remotely

Message runners cannot easily identify priority messages waiting in out-boxes, and priority messages likewise do not stand out for processing by the Message Controller or the message recipient. Another difficulty is that sometimes multiple recipients should receive the same message simultaneously so they can coordinate actions. This is not easily done with the current message delivery system. Message runners can deliver a form to only one person.  A "forwarding" procedure for messages allows only for sequential rather than simultaneous processing.

  • Call-taking/Dispatch Liaison

Call-takers were frequently bogged down in completing the forms, and did not always get complete information from the callers onto the form.This made follow-up more difficult later on, particularly if no callback number was obtained. In some cases, the simulators deliberately rushed the calltakers to challenge them to aggressively request the needed information.

There was some role confusion between the dispatch liaison and call-takers. The physical distance between the dispatch position and the call-takers made it difficult to coordinate and oversee information.

  • Whiteboard

Problems were noted with accessibility, readability, timeliness, level of detail,  obsolete information, and that there is no reliable record of what was actually posted.

Regarding timeliness of postings, shelter-related calls were being fielded for a time by the Operations Section Chief (due to the delayed arrival of Red Cross representatives) but  information was not posted to the whiteboard until after Red Cross arrived. This was due to the Operations Chief being overwhelmed with other duties.  When messages backed up at the Message Controller position those postings were delayed as well.

There is no posting system to track work items in progress. Other ECC staff have no way to know what else is being processed at that time other than what is occurring at their own table.

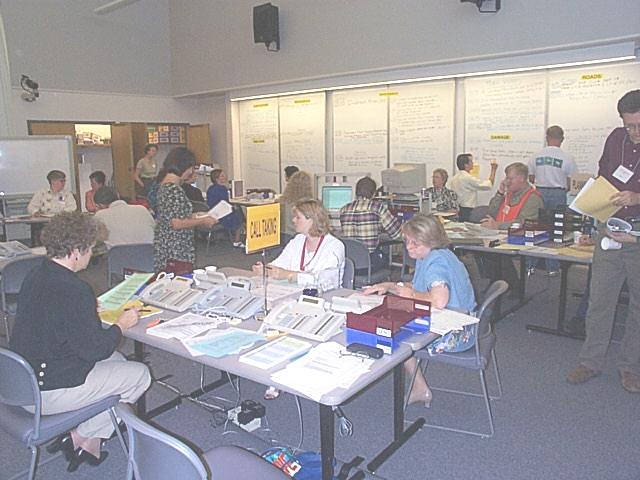

Picture of whiteboards
Whiteboard postings kept ECC staff informed of the current situation

Whiteboard notations were impossible to read from a distance, particularly with the red markers.  Partway into the exercise one staff member took away  the red pens, forcing the use of the more visible colors.  The writing on the board was also very small and therefore difficult to read at a distance.  Even with a scenario that was fairly light in terms of postings, the main board was full, and larger lettering was not possible.  Unless postings were made on the high-middle of the boards, the view was obscured by ECC staff, and yet only a very few people were tall enough to reach the top of the boards while utilizing the stepstool.  Only one stepstool is available in the ECC.

Events are traditionally posted chronologically; the more significant events or established incident priorities do not stand out from the other postings. Obsolete information remained on the board for quite some time before it was removed. No method exists for determining when a posting should be removed; the only record of a whiteboard posting is the written message copy. Some kind of record of the actual postings would be helpful.

  • Briefings

Several positive comments were received from external emergency management personnel regarding the use of the ECC microphone for important briefings to all ECC staff. The ECC manager provided thorough and frequent event overviews, and announced critical events immediately to keep all staff informed.  Not all staff stopped what they were doing during the briefings, however.  The ECC Manager also pulled together good briefings and strategic planning meetings for the Section Chiefs.

See recommendations related to ECC Organization and Electronic Systems, return to Summary, or use the links below to view more detailed findings.
